Response Body

Overview

Tyk enables you to modify the payload of API responses received from your upstream services before they are passed on to the client that originated the request. This makes it easy to transform between payload data formats or to expose legacy APIs using newer schema models without having to change any client implementations. This middleware is only applicable to endpoints that return a body with the response.

With the body transform middleware you can modify XML or JSON formatted payloads to ensure that the response contains the information required by your upstream service. You can enrich the response by adding contextual data that is held by Tyk but not included in the original response from the upstream.

This middleware changes only the payload and not the headers. You can, however, combine this with the Response Header Transform to apply more complex transformation to responses.

There is a closely related Request Body Transform middleware that provides the same functionality on the request sent by the client prior to it being proxied to the upstream.

Use Cases

Maintaining compatibility with legacy clients

Sometimes you might have a legacy API and need to migrate the transactions to a new upstream service but do not want to upgrade all the existing clients to the newer upstream API. Using response body transformation, you can convert the new format that your upstream services provide into legacy XML or JSON expected by the clients.

Shaping responses for different devices

You can detect the client device types via headers or context variables and transform the response payload to optimize it for that particular device. For example, you might optimize the response content for mobile apps.

SOAP to REST translation

A common use of the response body transform middleware is when surfacing a legacy SOAP service with a REST API. Full details of how to perform this conversion using Tyk are provided here.

Working

Tyk’s body transform middleware uses the Go template language to parse and modify the provided input. We have bundled the Sprig Library (v3) which provides over 70 pre-written functions for transformations to assist the creation of powerful Go templates to transform your API responses.

The Go template can be defined within the API Definition or can be read from a file that is accessible to Tyk, for example alongside your error templates.

We have provided more detail, links to reference material and some examples of the use of Go templating here.

Supported response body formats

The body transformation middleware can modify response payloads in the following formats:

• JSON
• XML

When working with JSON format data, the middleware will unmarshal the data into a data structure, and then make that data available to the template in dot-notation.

Data accessible to the middleware

The middleware has direct access to the response body and also to dynamic data as follows:

• Context variables, extracted from the request at the start of the middleware chain, can be injected into the template using the ._tyk_context.KEYNAME namespace
• Session metadata, from the Tyk Session Object linked to the request, can be injected into the template using the ._tyk_meta.KEYNAME namespace
• Inbound form or query data can be accessed through the ._tyk_context.request_data namespace where it will be available in as a key:[]value map
• values from key-value (KV) storage can be injected into the template using the notation appropriate to the location of the KV store

The response body transform middleware can iterate through list indices in dynamic data so, for example, calling {{ index ._tyk_context.request_data.variablename 0 }} in a template will expose the first entry in the request_data.variablename key/value array.

Automatic XML <-> JSON Transformation

A very common transformation that is applied in the API Gateway is to convert between XML and JSON formatted body content.

The Response Body Transform supports two helper functions that you can use in your Go templates to facilitate this:

• jsonMarshal performs JSON style character escaping on an XML field and, for complex objects, serialises them to a JSON string (example)
• xmlMarshal performs the equivalent conversion from JSON to XML (example)

If you’re using Tyk OAS APIs, then you can find details and examples of how to configure the response body transformation middleware here.

If you’re using Tyk Classic APIs, then you can find details and examples of how to configure the response body transformation middleware here.

Using Tyk OAS

The response body transform middleware provides a way to modify the payload of API responses before they are returned to the client.

The middleware is configured in the Tyk OAS API Definition. You can do this via the Tyk Dashboard API or in the API Designer.

If you’re using the legacy Tyk Classic APIs, then check out the Tyk Classic page.

API Definition

The design of the Tyk OAS API Definition takes advantage of the operationId defined in the OpenAPI Document that declares both the path and method for which the middleware should be added. Endpoint paths entries (and the associated operationId) can contain wildcards in the form of any string bracketed by curly braces, for example /status/{code}. These wildcards are so they are human readable and do not translate to variable names. Under the hood, a wildcard translates to the “match everything” regex of: (.*).

The response body transformation middleware (transformResponseBody) can be added to the operations section of the Tyk OAS Extension (x-tyk-api-gateway) in your Tyk OAS API Definition for the appropriate operationId (as configured in the paths section of your OpenAPI Document).

The transformResponseBody object has the following configuration:

• enabled: enable the middleware for the endpoint
• format: the format of input data the parser should expect (either xml or json)
• body: [see note] this is a base64 encoded representation of your template
• path: [see note] this is the path to the text file containing the template

For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

{
    "components": {},
    "info": {
        "title": "example-response-body-transform",
        "version": "1.0.0"
    },
    "openapi": "3.0.3",
    "paths": {
        "/anything": {
            "put": {
                "operationId": "anythingput",
                "responses": {
                    "200": {
                        "description": ""
                    }
                }
            }
        }
    },
    "x-tyk-api-gateway": {
        "info": {
            "name": "example-response-body-transform",
            "state": {
                "active": true
            }
        },
        "upstream": {
            "url": "http://httpbin.org/"
        },
        "server": {
            "listenPath": {
                "value": "/example-response-body-transform/",
                "strip": true
            }
        },
        "middleware": {
            "operations": {
                "anythingput": {
                    "transformResponseBody": {
                        "enabled": true,
                        "format": "json",
                        "body": "ewogICJ2YWx1ZTEiOiAie3sudmFsdWUyfX0iLAogICJ2YWx1ZTIiOiAie3sudmFsdWUxfX0iLAogICJyZXEtaGVhZGVyIjogInt7Ll90eWtfY29udGV4dC5oZWFkZXJzX1hfSGVhZGVyfX0iLAogICJyZXEtcGFyYW0iOiAie3suX3R5a19jb250ZXh0LnJlcXVlc3RfZGF0YS5wYXJhbX19Igp9"
                    }
                }
            }
        }
    }
}

In this example the response body transform middleware has been configured for requests to the PUT /anything endpoint. The body contains a base64 encoded Go template (which you can check by pasting the value into a service such as base64decode.org).

Decoded, this template is:

{
    "value1": "{{.value2}}",
    "value2": "{{.value1}}",
    "req-header": "{{._tyk_context.headers_X_Header}}",
    "req-param": "{{._tyk_context.request_data.param}}"
}

So if you make a request to PUT /anything?param=foo, configuring a header X-Header:bar and providing this payload:

{
    "value1": "world",
    "value2": "hello"
}

httpbin.org will respond with the original payload in the response and, if you do not have the response body transform middleware enabled, the response from Tyk will include:

{
    "value1": "world",
    "value2": "hello"
}

If, however, you enable the response body transform middleware, Tyk will modify the response to include this content:

{
    "req-header": "bar",
    "req-param": "[foo]",
    "value1": "hello",
    "value2": "world"
}

You can see that Tyk has swapped value1 and value2 and embedded the X-Header header and param query values from the request into the body of the response.

The configuration above is a complete and valid Tyk OAS API Definition that you can import into Tyk to try out the mock response middleware.

API Designer

Adding Response Body Transformation to your API endpoints is easy when using the API Designer in the Tyk Dashboard, simply follow the following steps:

1. Add an endpoint

   From the API Designer add an endpoint that matches the path and method to which you want to apply the middleware.







2. Select the Response Body Transform middleware

   Select ADD MIDDLEWARE and choose the Response Body Transform middleware from the Add Middleware screen.

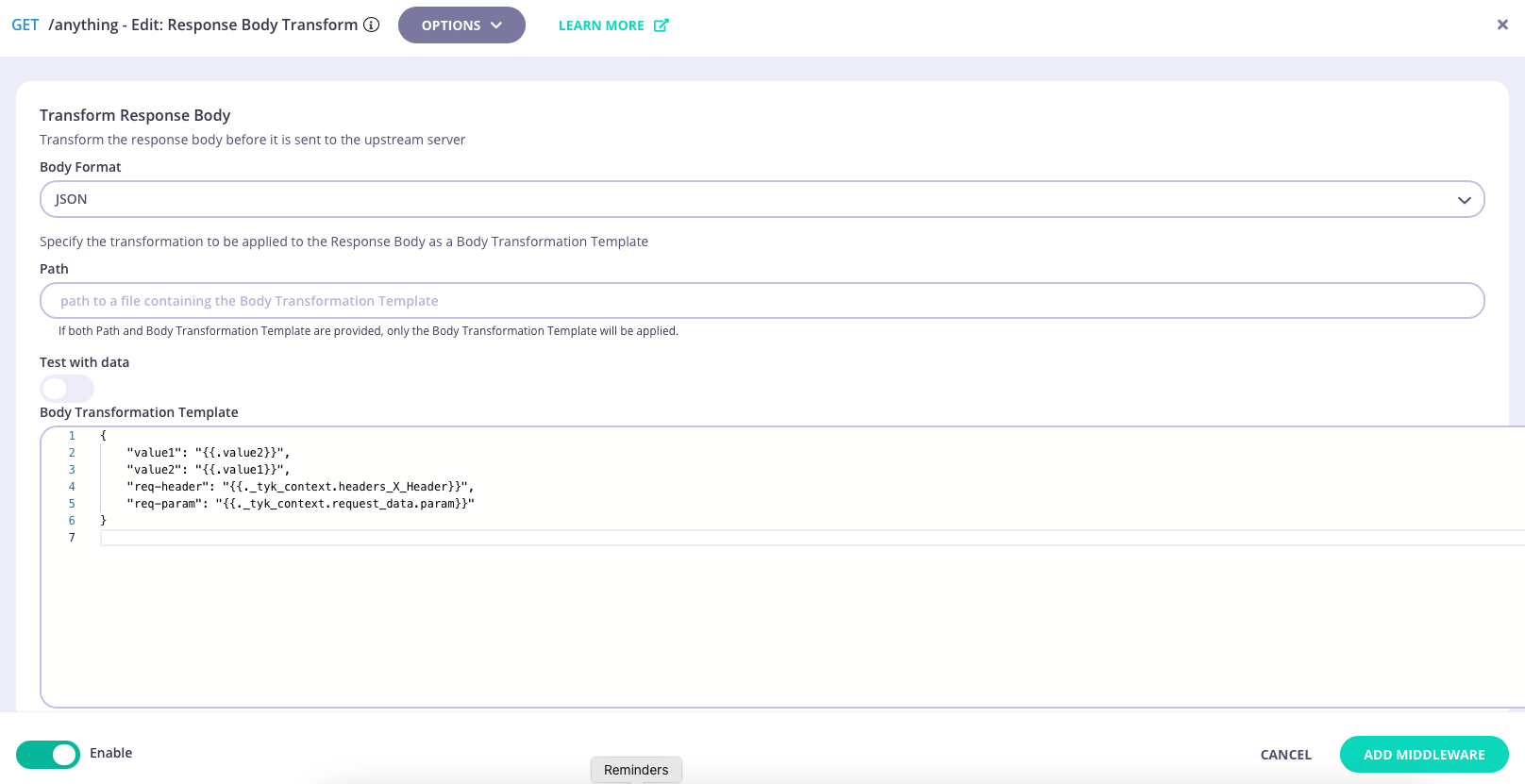

3. Configure the middleware

   Now you can select the response body format (JSON or XML) and add either a path to the file containing the template, or directly enter the transformation template in the text box.

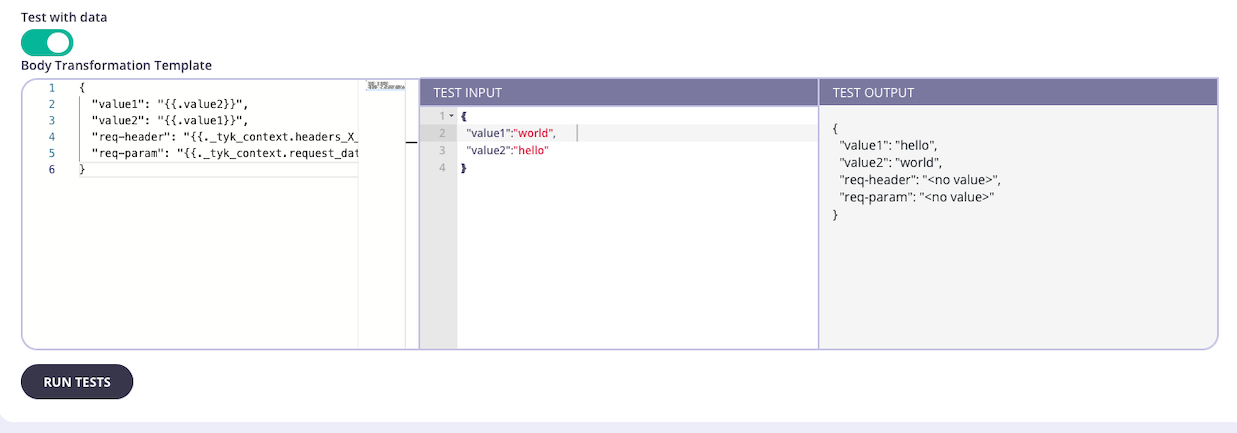

   The Test with data control will allow you to test your body transformation function by providing an example response body and generating the output from the transform. It is not possible to configure headers, other request parameters, context or session metadata to this template test so if you are using these data sources in your transform it will not provide a complete output, for example:



4. Save the API

   Select SAVE API to apply the changes to your API.

Using Classic

The response body transform middleware provides a way to modify the payload of API responses before they are returned to the client.

This middleware is configured in the Tyk Classic API Definition at the endpoint level. You can do this via the Tyk Dashboard API or in the API Designer.

If you’re using the newer Tyk OAS APIs, then check out the Tyk OAS page.

If you’re using Tyk Operator then check out the configuring the middleware in Tyk Operator section below.

API Definition

To enable the middleware you must add a new transform_response object to the extended_paths section of your API definition.

The transform_response object has the following configuration:

• path: the path to match on
• method: this method to match on
• template_data: details of the Go template to be applied for the transformation of the response body

The Go template is described in the template_data object by the following fields:

• input_type: the format of input data the parser should expect (either xml or json)
• enable_session: set this to true to make session metadata available to the transform template
• template_mode: instructs the middleware to look for the template either in a file or in a base64 encoded blob; the actual file location (or base64 encoded template) is provided in template_source
• template_source: if template_mode is set to file, this will be the path to the text file containing the template; if template_mode is set to blob, this will be a base64 encoded representation of your template

For example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16

{
    "extended_paths": {
        "transform_response": [
            {
                "path": "/anything",
                "method": "POST",
                "template_data": {
                    "template_mode": "file",
                    "template_source": "./templates/transform_test.tmpl",
                    "input_type": "json",
                    "enable_session": true
                }
            }
        ]
    }
}

In this example, the Response Body Transform middleware is directed to use the template located in the file at location ./templates/transform_test.tmpl. The input (pre-transformation) response payload will be json format and session metadata will be available for use in the transformation.

{
    "response_processors":[
        {"name": "response_body_transform"}
    ]
}

API Designer

You can use the API Designer in the Tyk Dashboard to configure the response body transform middleware for your Tyk Classic API by following these steps.

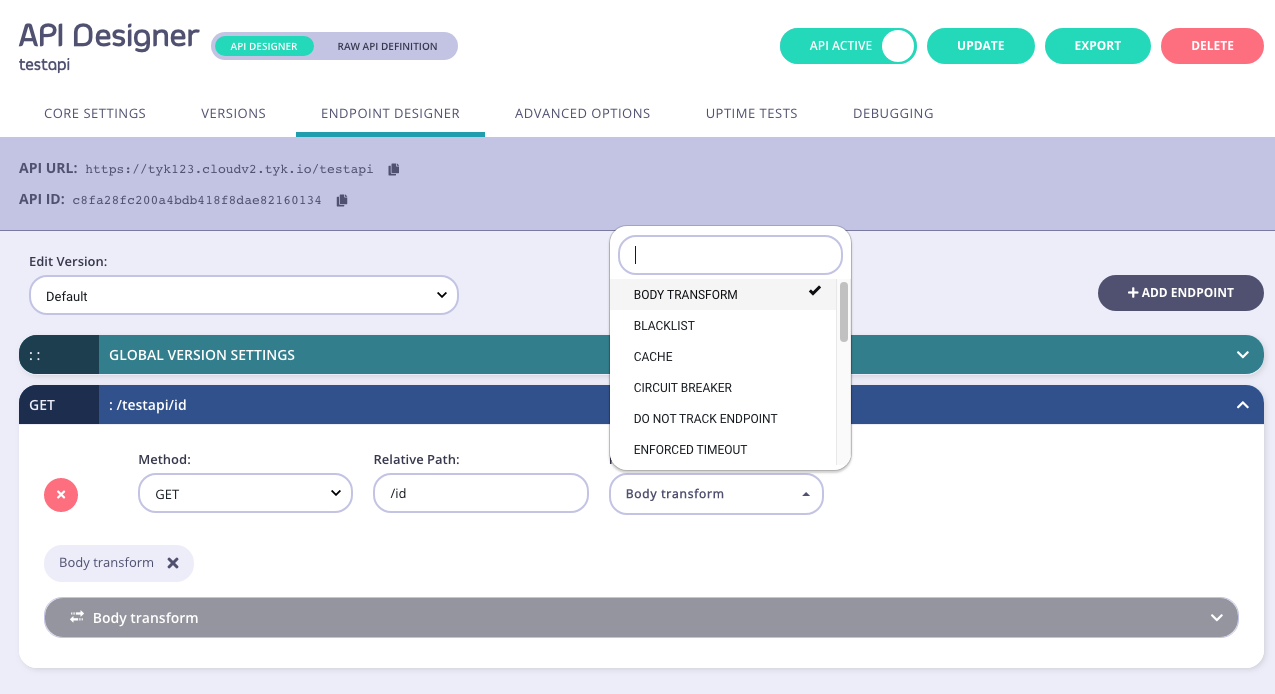

1. Add an endpoint for the path and select the plugin

   From the Endpoint Designer add an endpoint that matches the path for which you want to perform the transformation. Select the Body Transforms plugin.



2. Configure the middleware

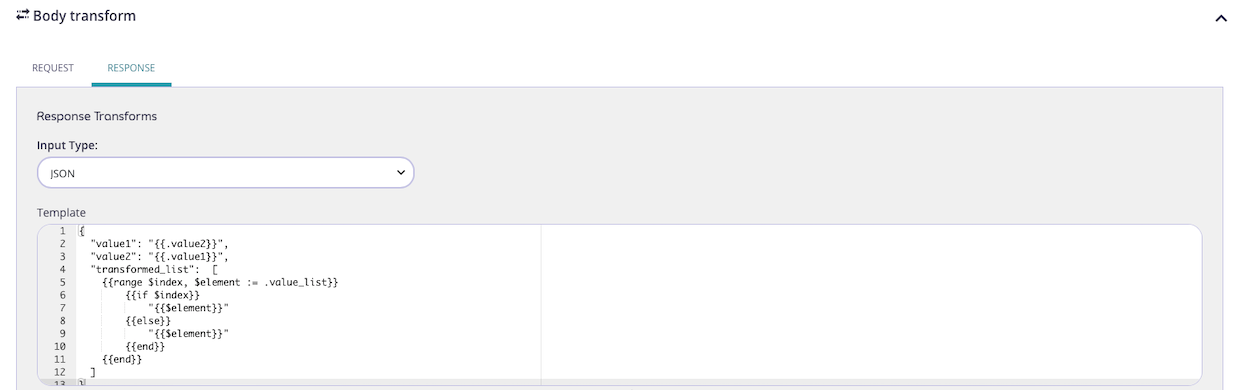

   Ensure that you have selected the RESPONSE tab, then select your input type, and then add the template you would like to use to the Template input box.



3. Test the Transform

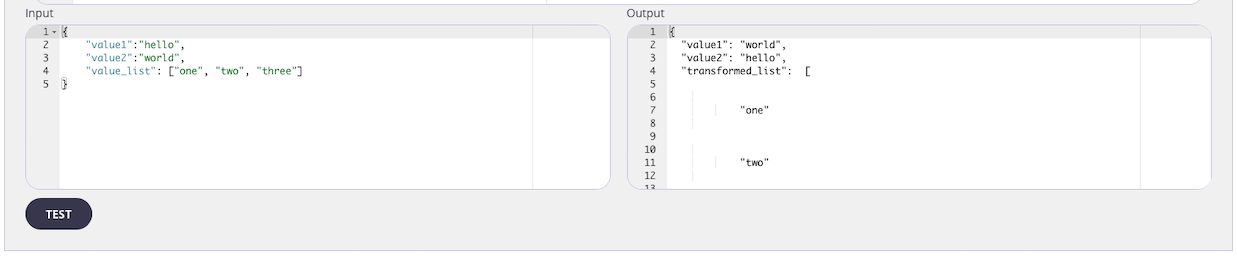

   If you have sample input data, you can use the Input box to add it, and then test it using the Test button. You will see the effect of the template on the sample input in the Output box.



4. Save the API

   Use the save or create buttons to save the changes and activate the Response Body Transform middleware.

Tyk Operator

The process of configuring a transformation of a response body for a specific endpoint is similar to that defined in section configuring the middleware in the Tyk Classic API Definition for the Tyk Classic API definition. To enable the middleware you must add a new transform_response object to the extended_paths section of your API definition.

In the examples below, the Response Body Transform middleware (transform_response) is directed to use the template located in the template_source, decoding the xml in the base64 encoded string. The input (pre-transformation) response payload will be xml format and there is no session metadata provided for use in the transformation.

Example

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

apiVersion: tyk.tyk.io/v1alpha1
kind: ApiDefinition
metadata:
  name: httpbin-transform
spec:
  name: httpbin-transform
  use_keyless: true
  protocol: http
  active: true
  proxy:
    target_url: http://httpbin.org
    listen_path: /httpbin-transform
    strip_listen_path: true
  version_data:
    default_version: Default
    not_versioned: true
    versions:
      Default:
        name: Default
        use_extended_paths: true
        paths:
          black_list: []
          ignored: []
          white_list: []
        extended_paths:
          transform:
            - method: POST
              path: /anything
              template_data:
                enable_session: false
                input_type: json
                template_mode: blob
                # base64 encoded template
                template_source: eyJiYXIiOiAie3suZm9vfX0ifQ==
          transform_headers:
            - delete_headers:
                - "remove_this"
              add_headers:
                foo: bar
              path: /anything
              method: POST
          transform_response:
            - method: GET
              path: /xml
              template_data:
                enable_session: false
                input_type: xml
                template_mode: blob
                # base64 encoded template
                template_source: e3sgLiB8IGpzb25NYXJzaGFsIH19
          transform_response_headers:
            - method: GET
              path: /xml
              add_headers:
                Content-Type: "application/json"
              act_on: false
              delete_headers: []

Tyk Gateway < 5.3.0 Example

If using Tyk Gateway < v5.3.0 then a response_processor object must be added to the API definition containing a response_body_transform item, as highlighted below:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

apiVersion: tyk.tyk.io/v1alpha1
kind: ApiDefinition
metadata:
  name: httpbin-transform
spec:
  name: httpbin-transform
  use_keyless: true
  protocol: http
  active: true
  proxy:
    target_url: http://httpbin.org
    listen_path: /httpbin-transform
    strip_listen_path: true
  response_processors:
    - name: response_body_transform
    - name: header_injector
  version_data:
    default_version: Default
    not_versioned: true
    versions:
      Default:
        name: Default
        use_extended_paths: true
        paths:
          black_list: []
          ignored: []
          white_list: []
        extended_paths:
          transform:
            - method: POST
              path: /anything
              template_data:
                enable_session: false
                input_type: json
                template_mode: blob
                # base64 encoded template
                template_source: eyJiYXIiOiAie3suZm9vfX0ifQ==
          transform_headers:
            - delete_headers:
                - "remove_this"
              add_headers:
                foo: bar
              path: /anything
              method: POST
          transform_response:
            - method: GET
              path: /xml
              template_data:
                enable_session: false
                input_type: xml
                template_mode: blob
                # base64 encoded template
                template_source: e3sgLiB8IGpzb25NYXJzaGFsIH19
          transform_response_headers:
            - method: GET
              path: /xml
              add_headers:
                Content-Type: "application/json"
              act_on: false
              delete_headers: []
